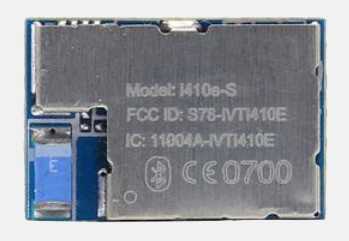

| Bluetooth4.0 BLE module i410e-s |
|

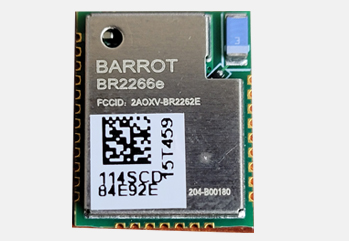

Bluetooth5.0 BLE module BR22266e |
|
|
| |
  |
|
Product Details |
| |
| Product |
i410e-s |
| Bluetooth class |
Class 2 |
| Range,line of sight(m) |
Classic:-
BLE:20 |
| Antenna |
Internal |
| Transmit power(dBm) |
7.5 |
| Receiver sensitivity(dBm) |
-85 |
| Consumption |
Deep sleep |
7~8uA |
| |
Sleep |
700uA |
| |
Inquiring |
- |
| |
Scanning |
1.8mA |
| |
Standby |
1.2mA |
| |
Connected |
1.47mA |
| |
Data Transfer |
2mA |
| Pins |
26 |
| Host Interfaces |
UART |
| Peripheral Interfaces |
9 PIOs, 3 AIOs |
| Operating voltage(V) |
1.8~3.3 |
| Temperature range(℃) |
-40 to +85 |
| Size(mm) |
13*9*1.6 |
| Shielding case |
Yes |
| Profiles |
GATT,Airsync,CSRMesh |
| Support mode |
Master and slave |
| Pair Time |
Classic: -- |
| |
BLE:-- |
| Connect time as Master |
SPP: --
GATT:200mS |
| Connect time as Slave |
SPP: --
GATT:500-2000ms |
| Multi-Connection |
- |
| Mesh |
Max device count:4095 |
| |
Join to mesh:1000ms |
| |
|
Transfer from node to node:15ms |
| Firmware options |
All-in-one |
| Maximum Throughput |
SPP:-
GATT:3KB/s |
| Firmware upgrade |
OTA/SPI down load |
| Memory |
64K RAM,64K ROM |
| Chip |
|
CSR 1012 |
| Compatibility |
SPP:-- |
| |
GATT:116/116 |
| Certifications |
|
TELEC,BQB |
| Key Feature |
Small |
| |
Low energy |
| |
Certifications |
| |
Support Master or Slave roles |
| |
Integrated antenna |
| |
Industrial temperature range from -40℃ to +86℃ |
| |
RoHS Compliant |
|
| |
 |
|
|
|
